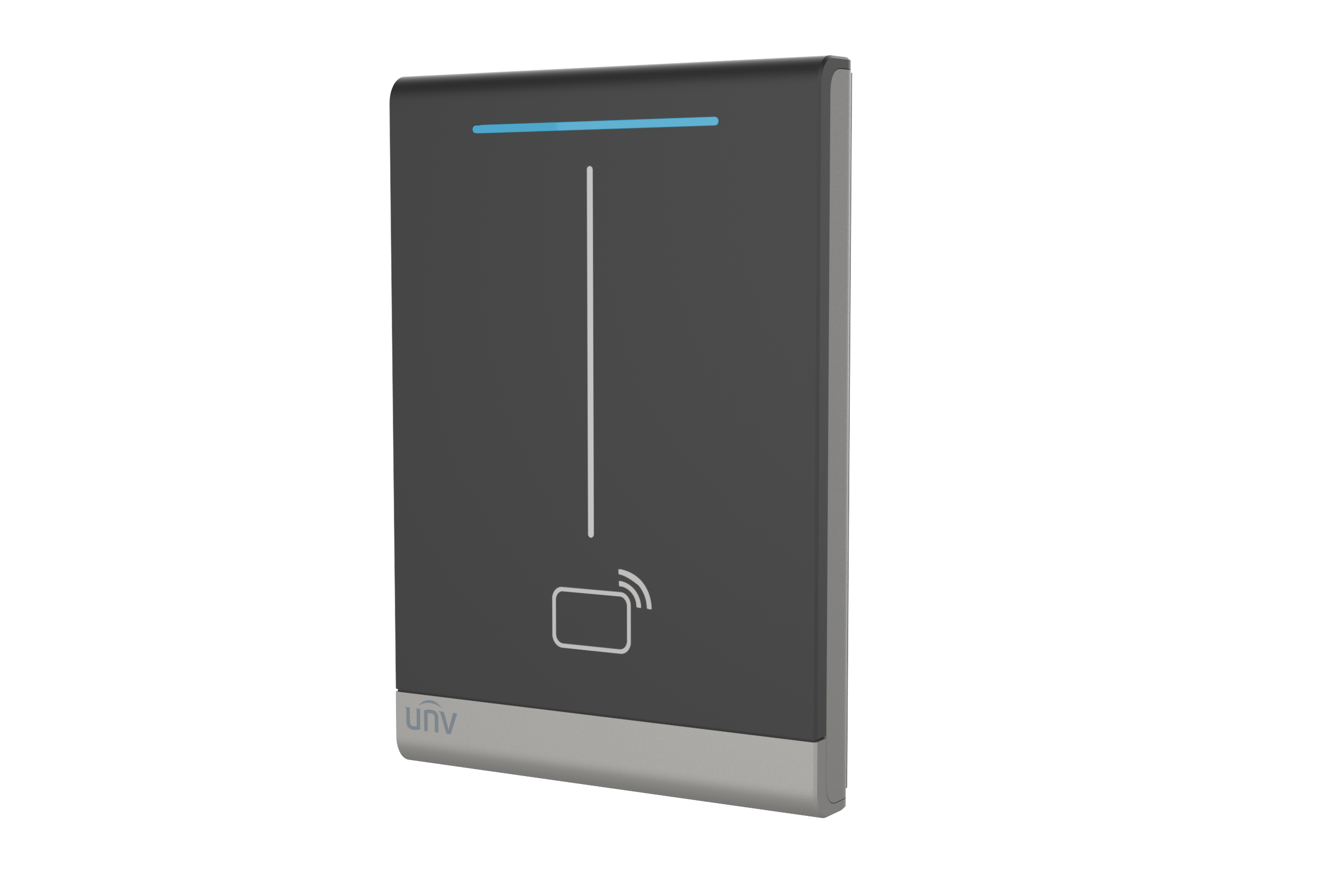

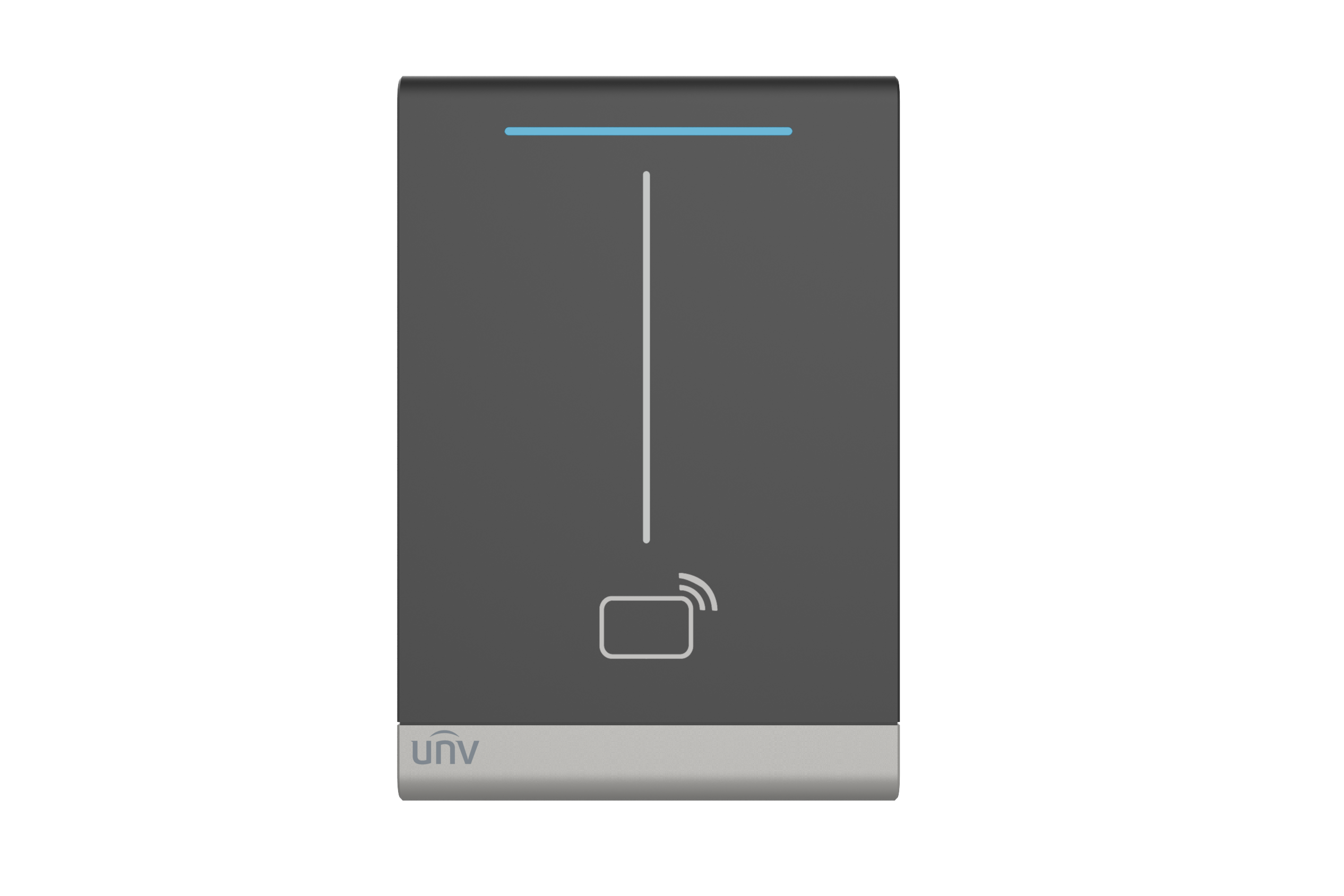

Wall Mounted Mifare Card Reader
• Support Wiegand/RS485 data output.
• Built-in buzzer.
• Supports indoor and outdoor application.
• Stable, sensitive, and responsive.
• Supports ISO 14443-A and ISO 14443-B protocols.
| OEC-R3H-M | ||||||||
| Hardware Specification | ||||||||
| Operating Frequency | 13.56MHz | |||||||
| Interface | Wiegand 26/34, RS485 | |||||||
| Material | PC | |||||||
| Dimensions (L x W x H) | 129*88*21mm | |||||||
| Weight | 134g | |||||||
| Mount Method | 115*73mm junction box, 86*86mm junction box | |||||||
| Operating Temperature | -30°C to 65°C | |||||||
| Operating Humidity | 10% to 90% | |||||||
| Storage Temperature | -40°C to 65°C | |||||||
| Indicator | Steady blue: Normal operation; | |||||||
| Steady green for 1s: Card authentication succeeded; | ||||||||
| Steady red for 1s: Card authentication failed | ||||||||
| Power Consumption | 0.732W | |||||||
| Operating Voltage | DC 12V ± 25% | |||||||
| Operating Current | 61mA | |||||||
| Reading Distance | IC card: max. 5cm | |||||||
| Authentication Mode | Card | |||||||
| Protection Level | IP65 | |||||||
| Basic Business | ||||||||
| Reading Time | < 1s | |||||||
| Card Type | Mifare card | |||||||
