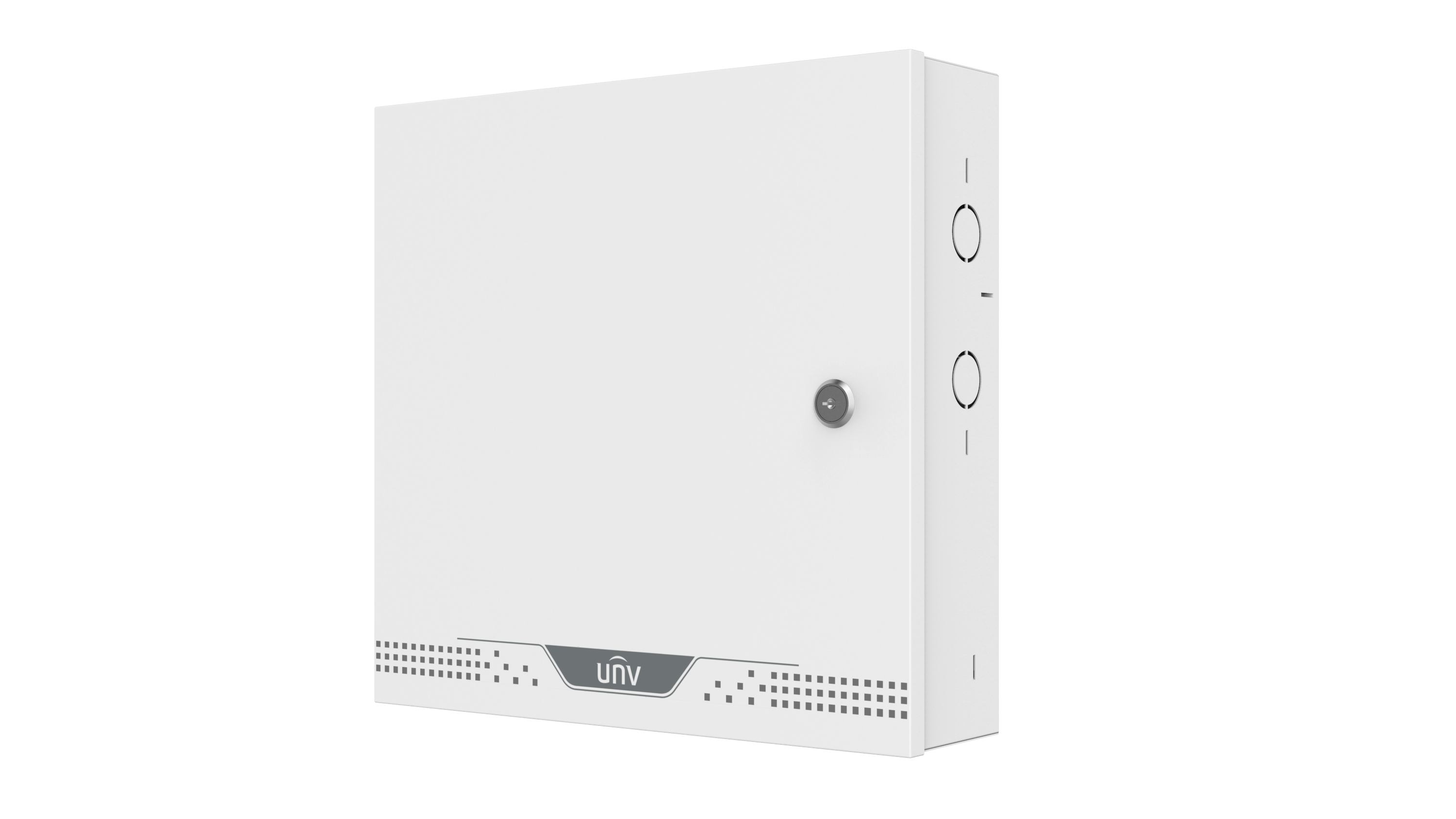

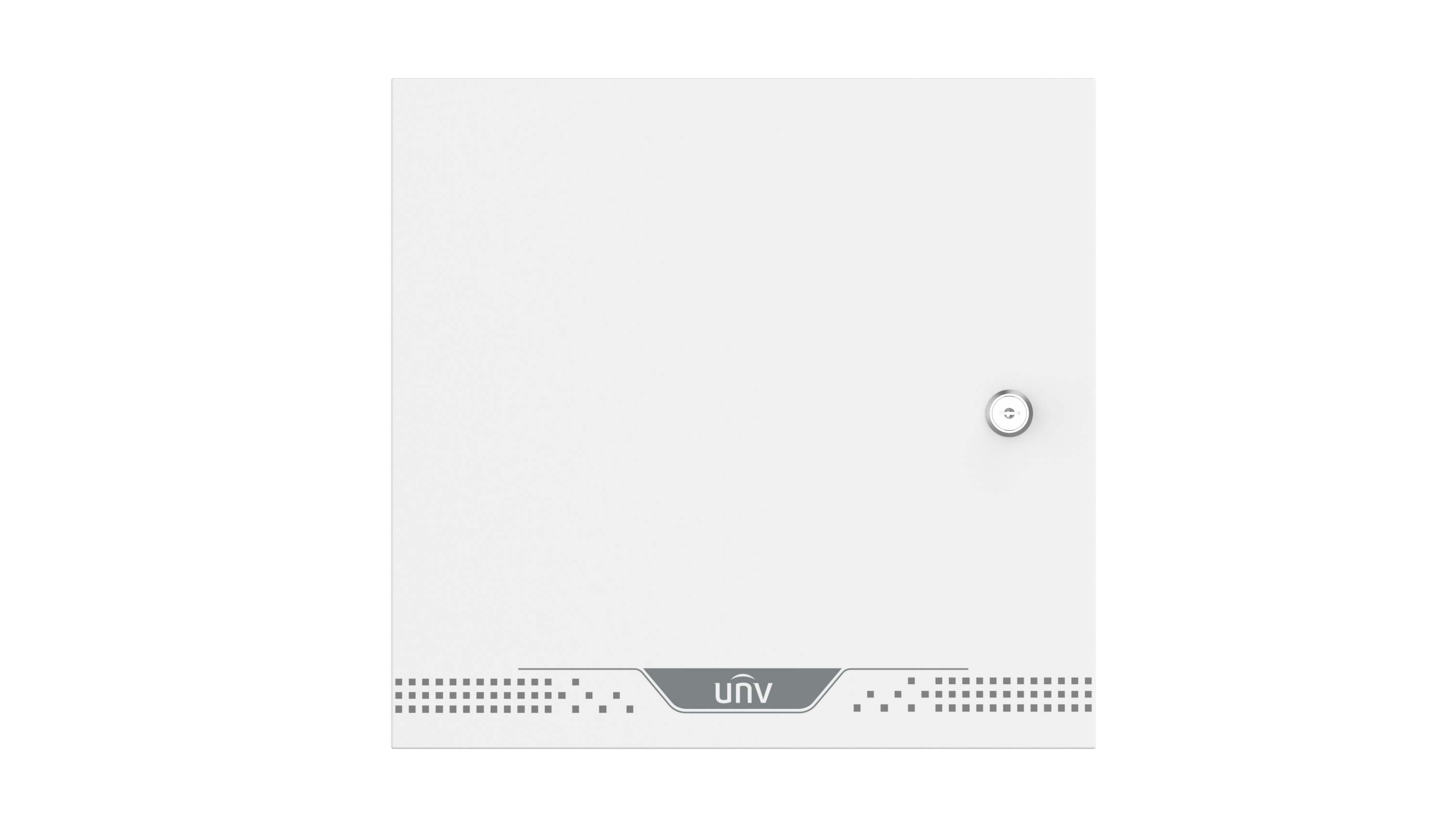

Specification Index	OER-604
Card Capacity	Common card + personnel password: 200,000
	Duress card + duress password: 1,000
	Other cards: 100
Event Capacity	300,000
Time Template	256
Holiday Template	256
Check Template	Supports up to 16 check templates configured by weekly schedule, up to 8 time periods per day, and up to 3 authentication modes per time period
Basic Business
Communication Mode	TCP/IP
Hardware Specification
Network Interface	1 x 100Mbps Ethernet interface
Number Of Controllable Door	4
Wiegand Interface	8 x Wiegand input
RS485 Interface	4
IO Input	1 x fire input, 4 x zone input, 8 x case input
IO Output	8
Power Output	2 x DC12V (maximum current for door lock: 5A, for card reader: 1.5A)
Door Lock Interface	4 x door lock control (NC+/NO+/COM)
	4 x door magnet, 4 x exit button
Tamper Button	Support
Application	Indoor
Operating Temperature	-30°C to 65°C
Rated Input Voltage	AC100V to AC240V (50/60Hz)
Spare Power Supply	DC12V/7AH, user-prepared
Air Circuit Breaker	Built-in
Mount Method	Wall mount
Indicator	Power indicator: Steady red when the device is connected to power
	Operation indicator: Blinks green when the operation is normal
	Door lock indicator: Steady green when the lock is open
	Fault indicator
	485 indicator
	Charging indicator
	Network indicator
Dimensions (L x W x H)	342mm*325.5mm*88mm
