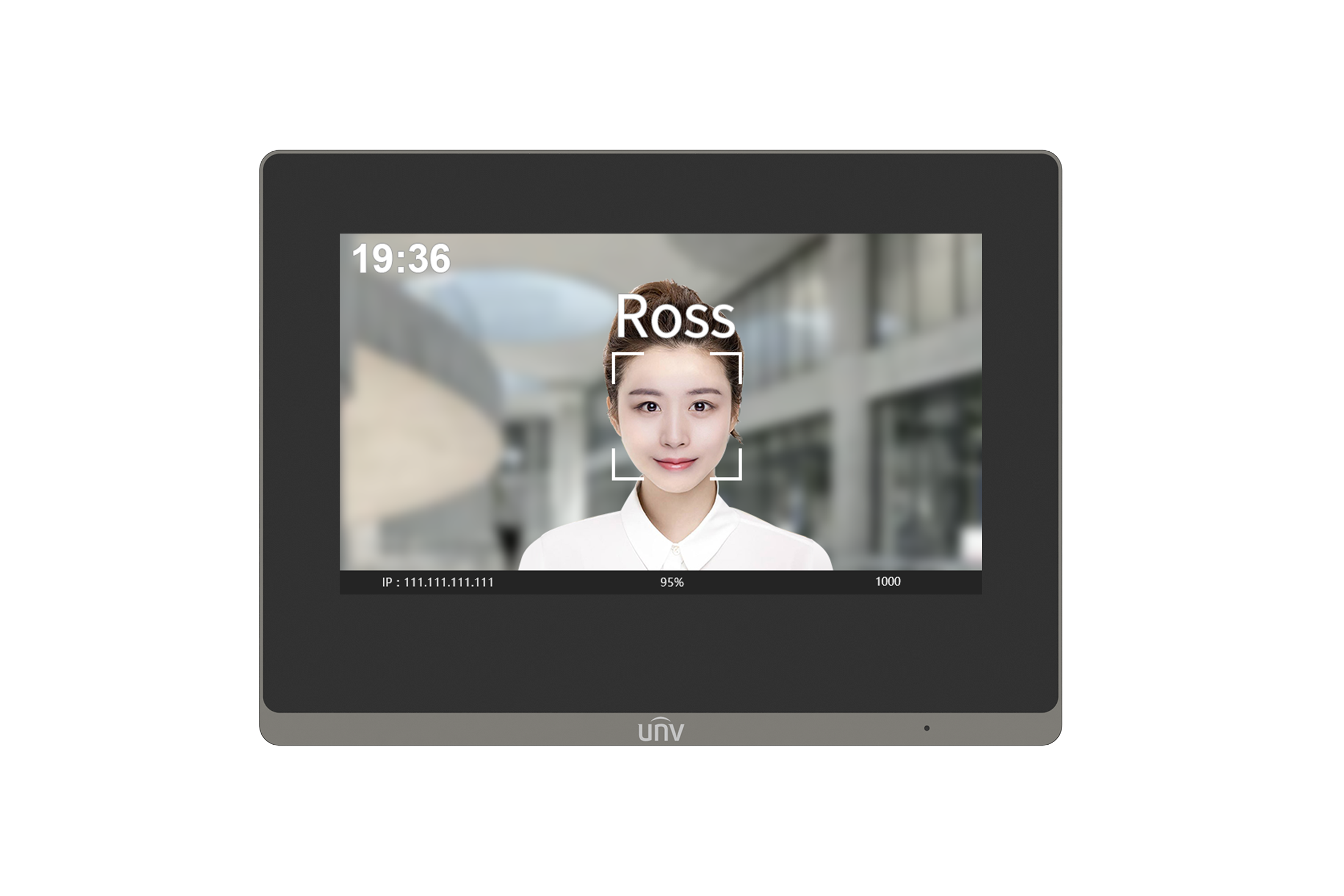

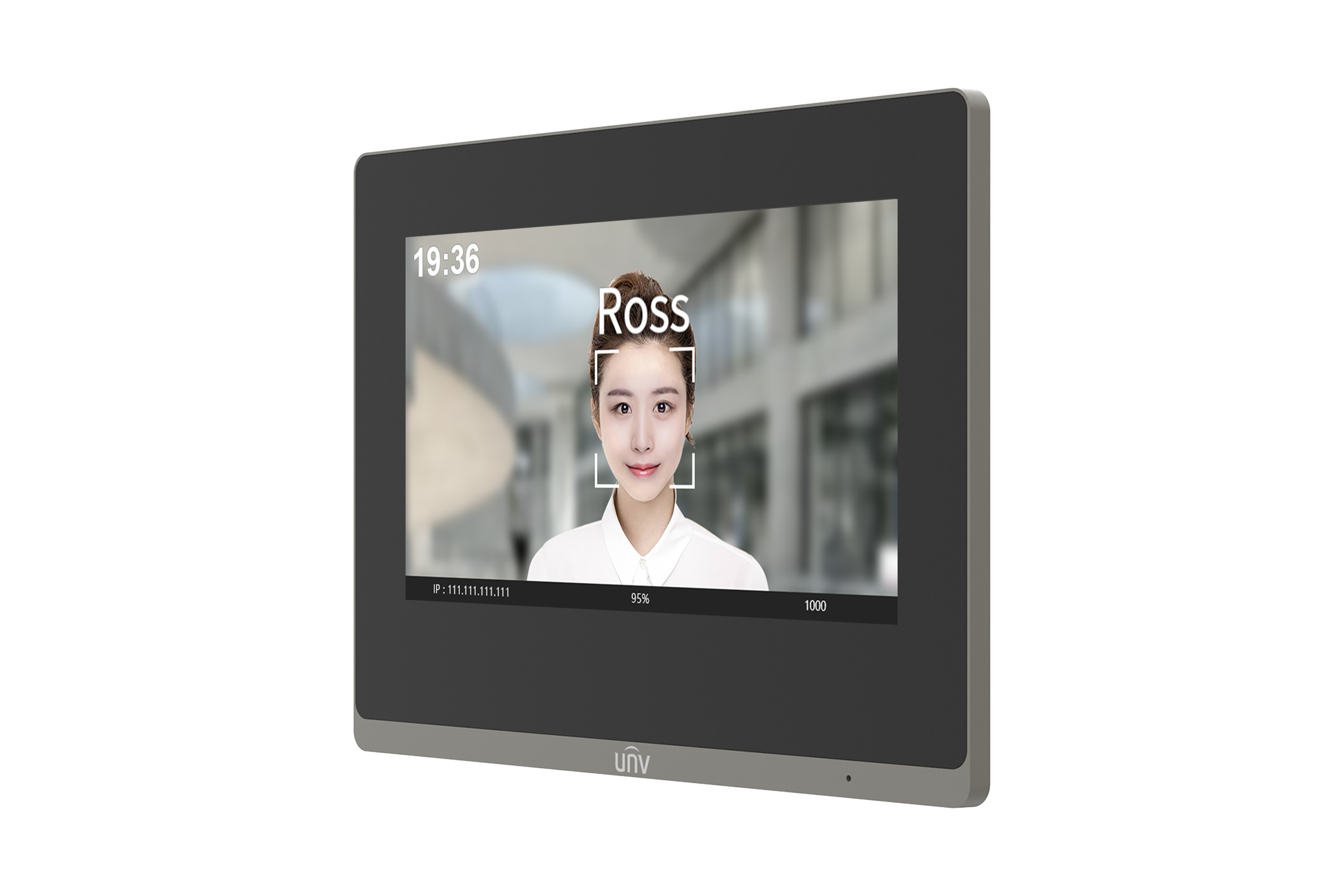

IWall Mounted 7-Inch Indoor Station(Touch Screen)
• Rugged ABS casing and glass panel.
• 1024*600 HD touch screen.
• Batch configuration transfer.
• Remote opening of linked door stations, one-key opening.
• Network camera monitoring, security alarm.
| Parameter | Description |
| Power | DC12V±25% |
| Screen resolution | 1024×600 |
| Screen | 7-inch ultra-thin TFT LCD screen |
| Operation system | Linux |
| Audio quality | Noise suppression,echo cancellation and AGC |
| Audio input | 1 built-in omnidirectional microphone |
| Audio output | 1 built-in speaker |
| Audio compression standard | MP3 G711 |
| Audio compression rate | 128Kbps |
| Protocol | UNV private protocol |
| Power consumption | ＜10W |
| Weight | 377g |
| Interface | Power*1, network*1, Wi-Fi*1, RS485*1, IO output*2, IO input*8, TF card slot*1 |
| Network | 100Mbps network port, supports IEEE802.3af PoE power supply |
| Dimensions (L×H×W) | 193.2mm×143.4mm×24.3mm |
| Operating environment | -10°C to +55°C, 10% to 90%, non-condensing, indoor |
